One Bike, Two Worlds: Smart Eco-Mode for the City, Fierce Beast for the Wild
1500 W
Brushless Motor
120 Km
Max Range
25 KM/H
Street Mode (Default) (Strictly complies with EN15194 for legal road use in the EU)
50 KM/H
Max Speed Off-Road Mode
750 WH
Removable Dual Battery
100 Kg
Max Load
20x4''
All-Terrain Fat Tires
Select a feature to explore in detail
REMOVABLE BATTERY
POWERFUL MOTOR
SUSPENSION
FENDER
DISC BRAKE
FAT TIRES
INTELLIGENT LCD DISPLAY
FRONT FORK SUSPENSION
SHIMANO 7-SPEED GEARS

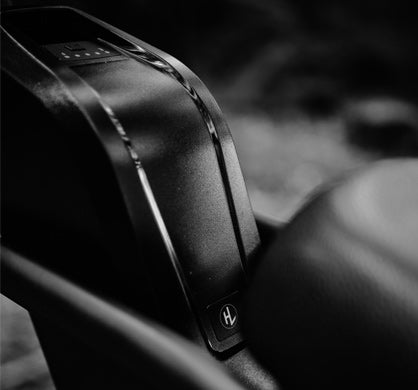

REMOVABLE BATTERY
The removable 48V15 A battery provides a range of 65–120 km with pedal assist. For convenient charging, you can easily remove the battery and use the built-in USB port as a portable power source on the go.

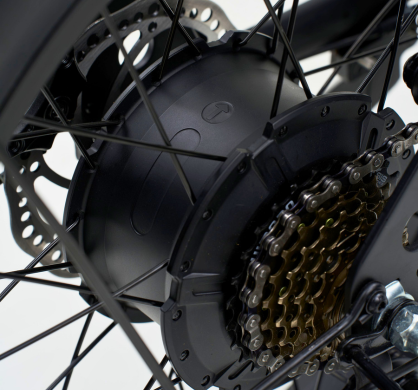

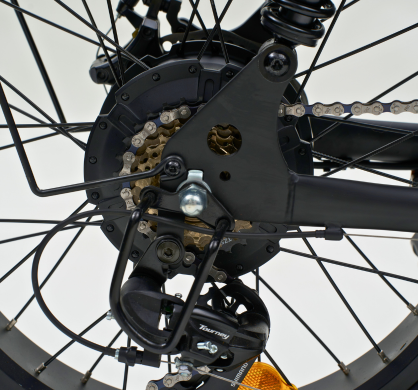

POWERFUL MOTOR
The 1500 W peak brushless hub motor can reach speeds of up to 45 km/h and conquer gradients up to 35 degrees, ideal for hilly terrains.

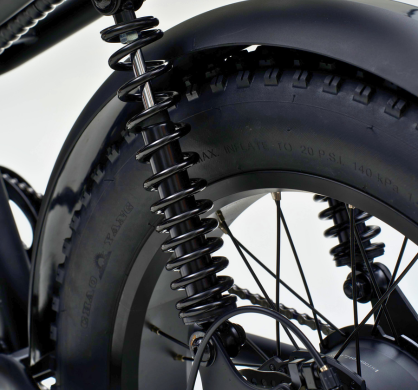

SUSPENSION
The 6-stage full suspension, including a hydraulic aluminum front fork and a rear dual-spring suspension, provides a smooth and comfortable ride across various terrains.

FENDER
The fender protects you and your bike from dirt and splashes, ensuring a cleaner and more comfortable ride in various weather conditions.

DISC BRAKE
With mechanical disc brakes at the front and rear and an EABS system, you get improved control and powerful braking on any terrain. The mechanical disc brakes provide strong and reliable stopping power, while the EABS system ensures smooth and efficient braking for a comfortable ride.

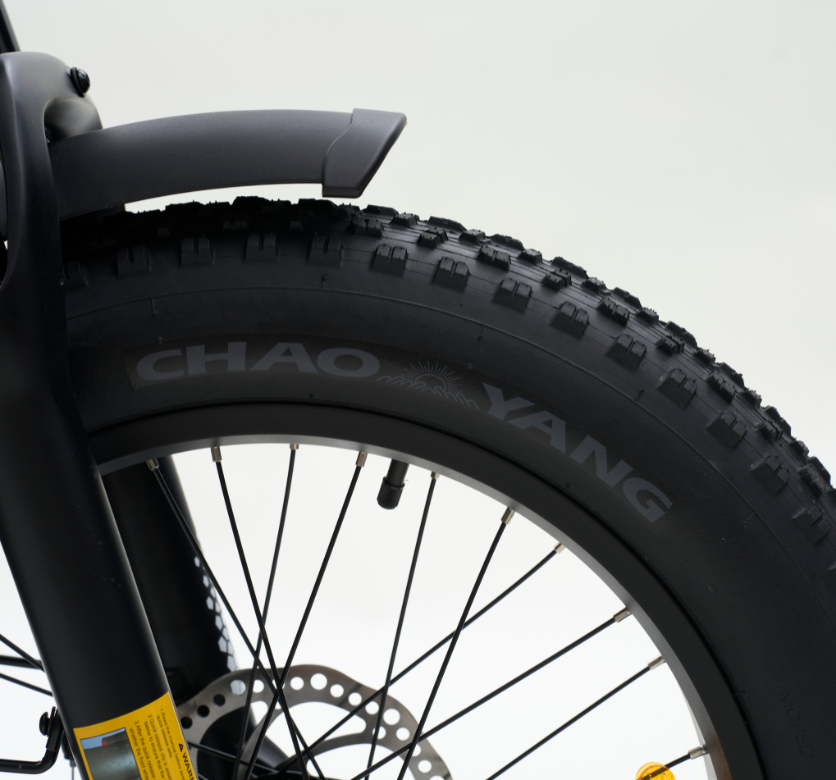

FAT TIRES
The 25''x4'' fat tires provide excellent traction and stability on various surfaces, and, combined with mechanical disc brakes at the front and rear, ensure reliable stopping power.

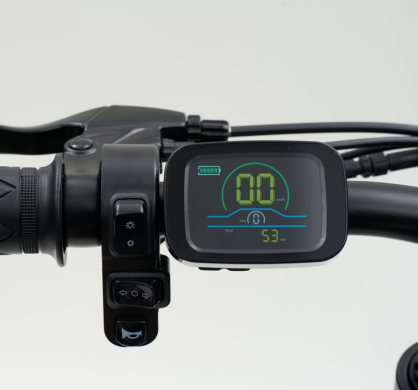

INTELLIGENT LCD DISPLAY
The intelligent LCD display is easy to read and shows essential riding information such as speed, mileage, remaining battery power, and riding modes. Using the LCD display controller, along with the horn and lights conveniently arranged on the left side, you can effortlessly switch between pedal-assist modes and monitor your current speed, remaining battery range, and more.

FRONT FORK SUSPENSION
The dual alloy fork shock absorbers provide a smooth and comfortable ride by effectively absorbing shocks and vibrations. Riding’times features one of the best shock absorbers on the market, meticulously crafted with 100% CNC machining for unmatched precision.

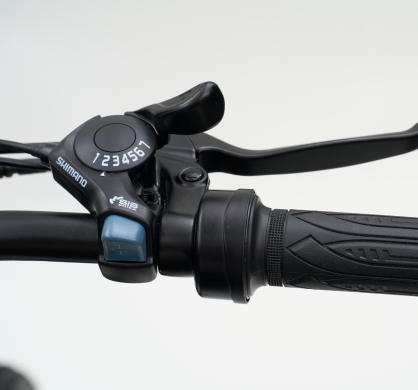

SHIMANO 7-SPEED GEARS
With the SHIMANO 7-speed gear system, you can tackle any terrain efficiently and effortlessly. By using the twist throttle on the right side and the 7-speed shifter, you can seamlessly adjust your speed in electric mode, non-electric mode, and pedal-assist mode. Switch between riding modes to reach speeds of up to 45km/h in pure electric mode.
Urban Freedom Redefined
GEOMETRY
Seat Tube 44cm
Head Tube 17cm
Top Tube 59cm
Wheelbase 115.44cm
Seat Tube Angle 72.4°
Bottom Bracket 5cm
Hub Tube Angle 69°
Reach 42.1cm
Chainstay Length 45.57cm
Stack Height 65.98cm
Components
| Specification | Z8 (Basic) | Z8 S (Performance) | Z8 Pro (Max Range) |
|---|---|---|---|
| Motor Power | Rear Hub 750W (Peak 1500W, 80Nm Torque) | ||
| Battery Capacity | 48V 15.6Ah | 48V 20.8Ah | Dual 48V 15.6Ah (31.2Ah Total) |
| Max Range (PAS) |
80–120 km (Throttle: 40-60km) |
108–161 km (Throttle: 53-79km) |
161–241 km (Throttle: 80-119km) |
| Braking System | Mechanical Disc + EABS | Hydraulic Disc Brakes | Mechanical Disc + EABS |
| Speed Modes | Street: 25 km/h (Legal) | Off-Road: Up to 50 km/h | ||
| Tires | 20'' x 4'' All-Terrain Fat Tires | ||
| Weight | 40.4 kg | 44.5 kg | 50.8 kg |
FAQ
What's the difference between Z8 and Z8 Pro?
The main difference between the Z8 and Z8 Pro is that the Z8 Pro is the dual battery version of the Z8. The Z8 Pro also includes a 10L large capacity bike rack bag, providing extended range and extra storage.

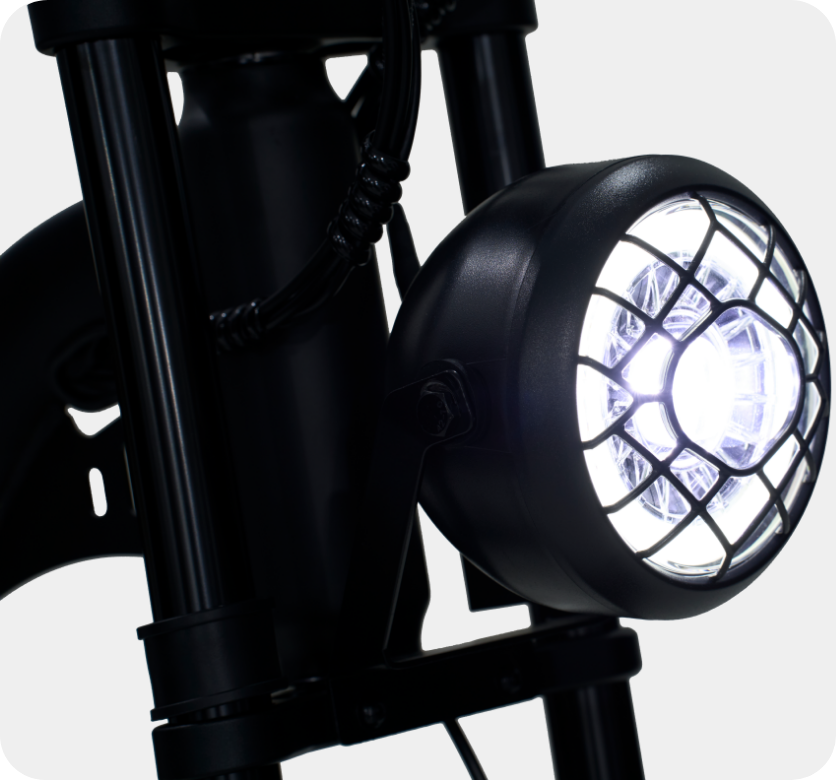

How do I install the headlight on the Z8 eBike?
The headlight is packed inside the same box as the charger and pedals.
To install the headlight, please refer to this video tutorial: https://www.youtube.com/watch?v=g_CoZFIgpEo
How do I install the front wheel on the Z8 or Z8S?
If the front wheel comes off, it’s usually due to one of the following reasons:
- The quick-release axle was not tightened properly.
- The safety hook (only for steel front forks) was not installed.
To install the front wheel correctly:
- Make sure to install the safety hook if your bike has a steel front fork.
- Then securely tighten the axle nut and properly fasten the quick-release lever.
For a step-by-step guide, please refer to our installation video: https://www.youtube.com/watch?v=NVwPe6DML9w
How do I change the speed unit from KM/H to MPH on my Z8 eBike?
Please refer to the video guide here:
https://www.youtube.com/watch?v=VdjjnsRcZLQ
